Authorization

Content owner: christian.blumenroehr@roche.com

This article is still a work in progress and will be updated to provide a holistic view of the CS CoE.

The below APIs are exposed on Gravitee. Make sure you have the API consumer role as described here.

RedPanda API for project data access management

Our data in pRED have many facets: they can be associated to portfolio projects, studies, compounds, assays, reactions, etc., each of which might have its own access needs. To implement an authorization management solution that considers all these levels will take its time. In several OneD projects however one aspect is of general importance and needs to be addressed now: how to manage access to the data belonging to a specific portfolio project?

RedPanda exposes an API on Gravitee

RedPanda REST API

This API only provides the access management information which users should in general have access to project data. Consuming applications need to apply it! The consuming applications also need to decide which project data should be exposed and they also need to decide whether all users should be able to consume the same data or whether some application-specific roles apply, e.g. for ExBP users.

pREDiLogin API

If you are using Active Directory groups to define access to your application you will need to check the membership of a user in some or several AD groups. This can be done with the pREDiLogin API. This API is available on Gravitee:

pREDiLogin API

IAM Proxy API

This service integrates responses from RedPanda + pREDiLogin (AD lookup) APIs into a single OIDC Rest Endpoint. You can get AD group memberships (based on a prefix or by specific groups) and projects IDs from the same REST endpoint. To authenticate against the service you need to send the access token. Important: this API only provides the access management information. Consuming applications need to apply it.

API on Gravitee:

API using RedPanda PROD, pREDiLogin PROD and PingFed PROD

CIDM Group Management API

An alternative to the pREDiLogin API is the CIDM Group Management API which is exposed on Mulesoft. This API is in parts limited compared to the pREDiLogin API but in other parts it has additional functionalities.

same functionalities:
- searching of groups
- check the members of an Active Directory or CIDM group
  - It is still to be checked whether the API also supports nested groups as the pREDiLogin API does.
missing functionalities compared to pREDiLogin API:
- searching of users
- retrieving user details
- checking of group memberships for several groups and users
- caching for high performance
- checking credentials of users
additional functionalities compared to pREDiLogin API:
- group management:
  - create, delete groups
  - add, delete users
  - manage allowed senders

CIDM application integration

The CIDM team (contact von-schwerin.chahir@gene.com) offers custom application integrations. This is especially useful, when 3rd party applications need to be integrated which allow user and role management via APIs in order to prevent that user and role management either needs to be performed manually or is done by potentially expensive custom implementations of the external vendors.

The CIDM team can implement the integration with those APIs as part of the user on- and off-boarding processes as it is shown below for the example of Laboperator. Please note that authentication still should be implemented using Roche SSO (PingFederate).

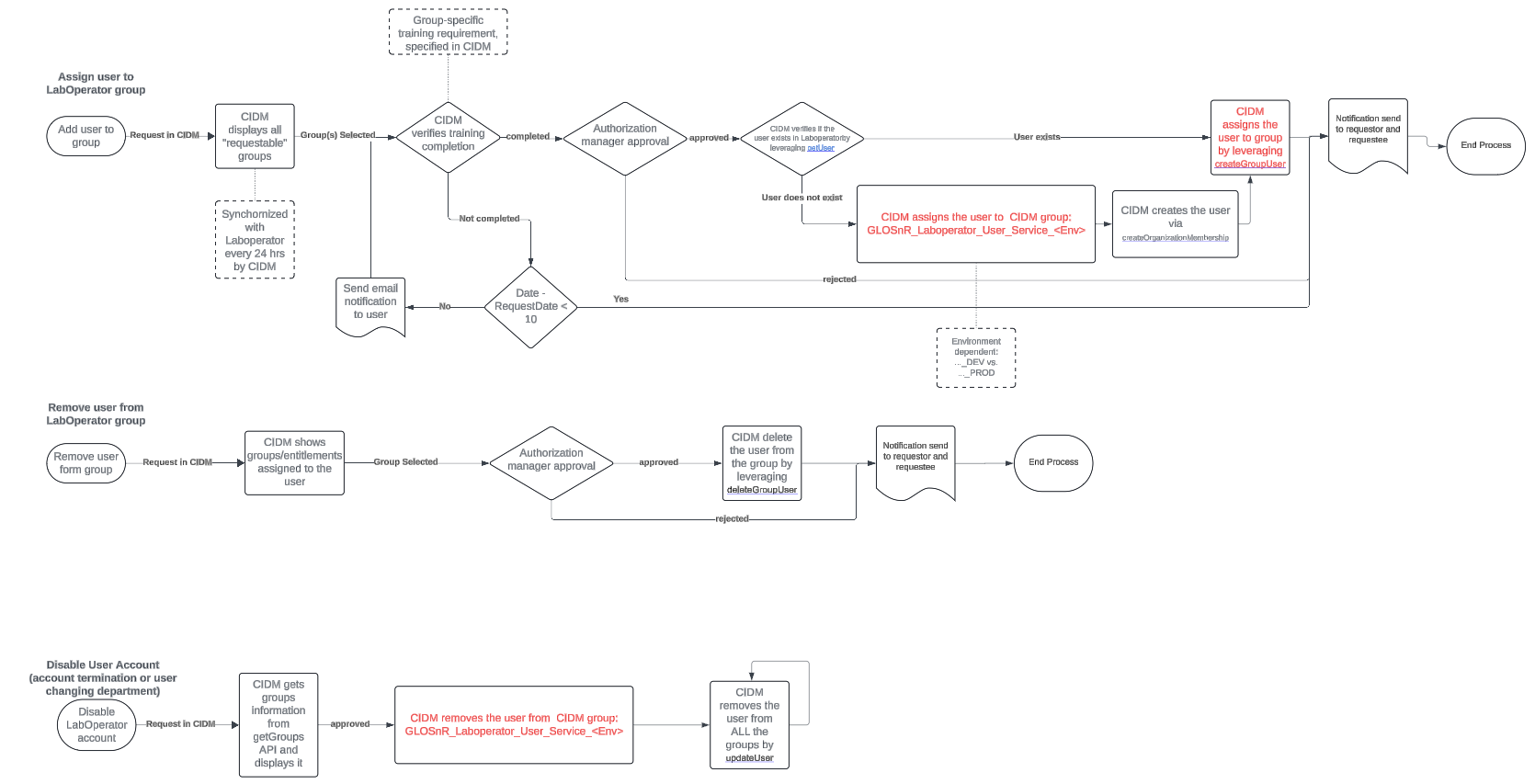

Figure 1. CIDM application integration for Laboperator

Auto-filled AD/CIDM groups for access management

We have several AD groups which are all starting with GLOpAppAuth_ and which are using AD filters to be populated automatically. These groups reflect organisations and can be used for access management.

Name of AD group

AD filter

Description

Sub groups

GLOpAppAuth_pRED_All

GLOpAppAuth_pRED_Internals_All
GLOpAppAuth_pRED_Contractors_All
GLOpAppAuth_pRED_Trainees
GLOpAppAuth_pRED_Technical

GLOpAppAuth_pRED_Internals_All

(&(|(department=P*)(cn=bonnia)
  (&(|(department=GT*)(department=GS*))(|(c=CH)(c=DE)(c=GB))))
  (!(department=People*))
  (company=*Roche*)
  (division=Pharmaceuticals)
  (employeeType=internal)
  (!(l=SHANGHAI))(!(gneCostCenterName=*CICoR*))
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

with a department starting with "P" (plus Azad Bonni as pRED head)
and who have either an department starting with "GT" or "GS" and who are in Switzwerland, Germany or UK (this is to still include the users from legacy D&A)
but who are not in CICoR

GLOpAppAuth_pRED_Contractors_All

(&(|(department=P*)
  (&(|(department=GT*)(department=GS*))(|(c=CH)(c=DE)(c=GB))))
  (!(department=People*))
  (company=*Roche*)
  (division=Pharmaceuticals)
  (employeeType=contractor)
  (!(l=SHANGHAI))(!(gneCostCenterName=*CICoR*))
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All external users

with a department starting with "P"
and who have either an department starting with "GT" or "GS" and who are in Switzwerland, Germany or UK (this is to still include the users from legacy D&A)
but who are not in CICoR

GLOpAppAuth_pRED_Trainees

(&(department=HBI*)(l=BASEL)
  (|(buildingName=065)
     (buildingName=068)
     (buildingName=069)
     (buildingName=070)
     (buildingName=007)
     (buildingName=006)
     (buildingName=005)
     (buildingName=090))
  (|(division=Others)(division=Pharmaceuticals))
  (employeeType=internal)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

from department starting with HBI
who are in BASEL
and who are in one of the listed buildings

GLOpAppAuth_pRED_Technical

GLOpAppAuth_pRED_BDS

BDS Access
GLOBDS_USER_GENERIC
GLOpAppAuth_CICoR_All

GLOpAppAuth_CSCoE_All

GLOpAppAuth_CSCoE_Internals_All
GLOpAppAuth_CSCoE_Contractors_All

GLOpAppAuth_CSCoE_Internals_All

GLOpAppAuth_CSCoE_EMEA_Internals_All
GLOpAppAuth_CSCoE_NALA_Internals_All
GLOpAppAuth_CSCoE_ASIA_Internals_All
marionij

GLOpAppAuth_CSCoE_Contractors_All

GLOpAppAuth_CSCoE_EMEA_Contractors_All
GLOpAppAuth_CSCoE_NALA_Contractors_All *GLOpAppAuth_CSCoE_ASIA_Contractors_All

GLOpAppAuth_CSCoE_EMEA_All

GLOpAppAuth_CSCoE_EMEA_Internals_All
GLOpAppAuth_CSCoE_EMEA_Contractors_All

GLOpAppAuth_CSCoE_EMEA_Internals_All

(&(|(department=GT*)(department=GS*))
  (|(c=CH)(c=DE)(c=GB))
  (division=Pharmaceuticals)
  (employeeType=internal)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

in a department starting with GT or GS
in Switzerland, Germany or the UK

GLOpAppAuth_CSCoE_EMEA_Contractors_All

(&(|(department=GT*)(department=GS*))
  (|(c=CH)(c=DE)(c=GB))
  (division=Pharmaceuticals)
  (employeeType=contractor)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All external users

in a department starting with GT or GS
in Switzerland, Germany or the UK

GLOpAppAuth_CSCoE_NALA_All

GLOpAppAuth_CSCoE_NALA_Internals_All
GLOpAppAuth_CSCoE_NALA_Contractors_All

GLOpAppAuth_CSCoE_NALA_Internals_All

(&(|(department=GT*)(department=GS*))
  (|(c=US)(c=CA))
  (division=Pharmaceuticals)
  (employeeType=internal)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

in a department starting with GT or GS
in the US or Canada

GLOpAppAuth_CSCoE_NALA_Contractors_All

(&(|(department=GT*)(department=GS*))
  (|(c=US)(c=CA))
  (division=Pharmaceuticals)
  (employeeType=contractor)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All external users

in a department starting with GT or GS
in the US or Canada

GLOpAppAuth_CSCoE_ASIA_All

GLOpAppAuth_CSCoE_ASIA_Internals_All
GLOpAppAuth_CSCoE_ASIA_Contractors_All

GLOpAppAuth_CSCoE_ASIA_Internals_All

(&(|(department=GT*)(department=GS*))
  (|(c=CN))
  (division=Pharmaceuticals)
  (employeeType=internal)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

in a department starting with GT or GS
in China

GLOpAppAuth_CSCoE_ASIA_Contractors_All

(&(|(department=GT*)(department=GS*))
  (|(c=CN))
  (division=Pharmaceuticals)
  (employeeType=contractor)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All external users

in a department starting with GT or GS
in China

GLOpAppAuth_gRED_All

GLOpAppAuth_gRED_Internals_All
GLOpAppAuth_gRED_Internals_All

GLOpAppAuth_gRED_Internals_All

(&((department=G*)
  (company=Genentech*)
  (employeeType=internal)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

in a department starting with G
in a company starting with Genentech (this currently excludes the legacy D&A team)

GLOpAppAuth_gRED_Contractors_All

(&((department=G*)
  (company=Genentech*)
  (employeeType=contractor)
  (rocheIsPrimaryUserID=TRUE)
  (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All external users

in a department starting with G
in a company starting with Genentech (this currently excludes the legacy D&A team)

GLOpAppAuth_CICoR_All

GLOpAppAuth_CICoR_Internals_All
GLOpAppAuth_CICoR_Contractors_All

GLOpAppAuth_CICoR_Internals_All

(|(cn=shenh8)
  (&((company=Roche R&D Center (China)*))
    (division=Pharmaceuticals)
    (department=PB*)
    (employeeType=internal)
    (rocheIsPrimaryUserID=TRUE)))
    (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All internal users

in a department starting with PB
in a company starting with Roche R&D Center (China)
plus Hong Shen (head of CICoR)

GLOpAppAuth_CICoR_Contractors_All

((&((company=Roche R&D Center (China)*))
    (division=Pharmaceuticals)
    (department=PB*)
    (employeeType=contractor)
    (rocheIsPrimaryUserID=TRUE)))
    (!(UserAccountControl:1.2.840.113556.1.4.803:=2))
)

All external users

in a department starting with PB
in a company starting with Roche R&D Center (China)
